Vibo Wire Pantry Pull-Out Units

Commercial quality pull-out pantry units.

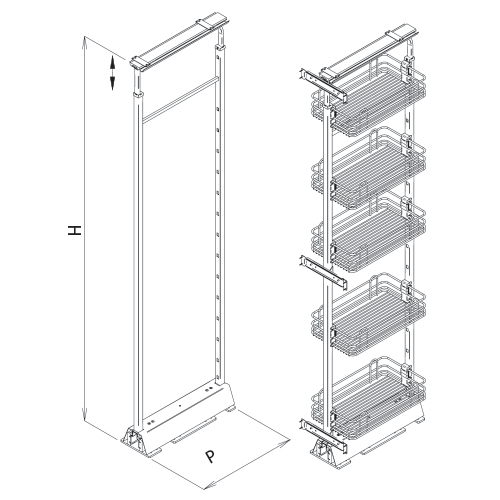

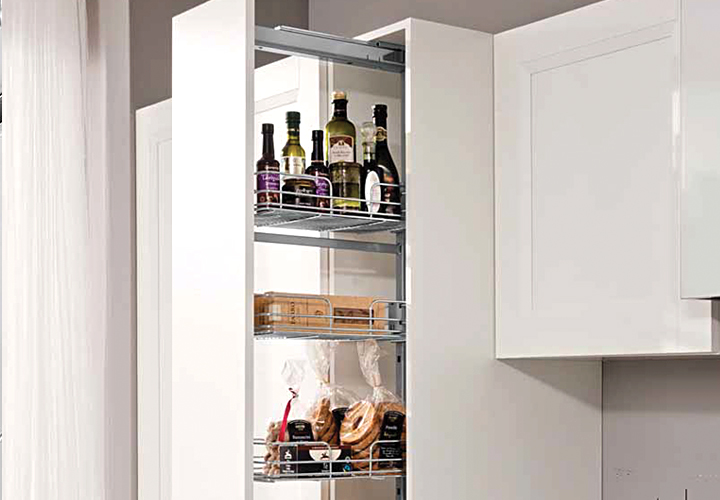

Vibo Wire Pantry Pull-Out Unit



Vibo Wire Pantry Pull-Out Units

The Vibo Wire Pantry Pull-Out Unit is an economical product featuring heavy duty wire with the highest quality chrome plating. We offer this unit at highly competitive pricing with flexible delivery options to suit large commercial projects. Contact us to discuss your specific requirements and deadlines and we can provide you with a quotation. Parts can be ordered separately and we also offer a wide range of other pantry options on request.

  • Small size unit: 1460 – 1900mm height (features 4 baskets)
  • Large size unit: 1760 – 2200mm height (features 5 baskets)
  • Three cabinet widths available: 300, 400 & 500mm (overall)
  • Heavy duty wire with highest quality chrome plating
  • Easy to install
  • 120kg load capacity
  • Soft closing feature
  • Grey metal frame
  • Quality, economical solution



Suits 300, 400 & 500mm Cabinet Width (Overall)

Codes:

VBPPOWS30 300mm Small
VBPPOWS40 400mm Small
VBPPOWS50 500mm Small
VBPPOW30 300mm Large
VBPPOW40 400mm Large
VBPPOW50 500mm Large
300mm Small Kit W mm D mm H mm Weight kg # of Baskets
Baskets 240 414 106.50 1.89 4 included
Frame 95 497 1460 - 1900 11
Mounting Brackets 250 40 45 0.42

400mm Small Kit W mm D mm H mm Weight kg # of Baskets
Baskets 340 414 106.50 2.31 4 included
Frame 95 497 1460 - 1900 11
Mounting Brackets 350 40 45 0.49

500mm Small Kit W mm D mm H mm Weight kg # of Baskets
Baskets 440 414 106.50 2.67 4 included
Frame 95 497 1460 - 1900 11
Mounting Brackets 450 40 45 0.57

300mm Large Kit W mm D mm H mm Weight kg # of Baskets
Baskets 240 414 106.50 1.89 5 included
Frame 95 497 1760 - 2200 12
Mounting Brackets 250 40 45 0.42

400mm Large Kit W mm D mm H mm Weight kg # of Baskets
Baskets 340 414 106.50 2.31 5 included
Frame 95 497 1760 - 2200 12
Mounting Brackets 350 40 45 0.49

500mm Large Kit W mm D mm H mm Weight kg # of Baskets
Baskets 440 414 106.50 2.67 5 included
Frame 95 497 1760 - 2200 12
Mounting Brackets 450 40 45 0.57

Vibo Wire Pantry Pull-Out Unit
